GEE-QR-ER80 QR Code Access Control Reader
86 mm * 86mm * 42 mm, PVC material, White/ black enclosure, DC 9- 13v, 70 mA, 125 kHz/ 13.56 Mhz RFID card support, 5- 10 cm read distance, WG 26/ 34 interface, IPX4 water proof
Download Specification
OverviewSpecificationApplicationsSupport
GEE-QR-ER80 is a static QR code access control reader with optional ID/ IC card function. It supportsBreading QR code, DM and 1D barcode with interface of Wiegand, RS232/ RS485, USB and TCP/IP. Typical application: access control
GEE-QR-ER80
Main features:
• 86 mm x 86 mm x 42 mm, standard wall mounted box size
• PC enclosure with tempered glass window, built-in LED
• 2D QR Code, 1D CODE39, CODE128 barcode supported
• WG26/ 34, RS232/ 486, TCP/IP, USB interface ( USB virtual keyboard)
• Optional support 125 kHz EM4100 or 13.56 Mhz Mifare 1K/ 4k rfid card
• IPX4 water proof
| Physical | |
| Model | QR-ER80 |
| Size | 86 mm(L) x 86 mm( W) x 42 mm (H) |
| Material | PC enclosure, toughened glass |

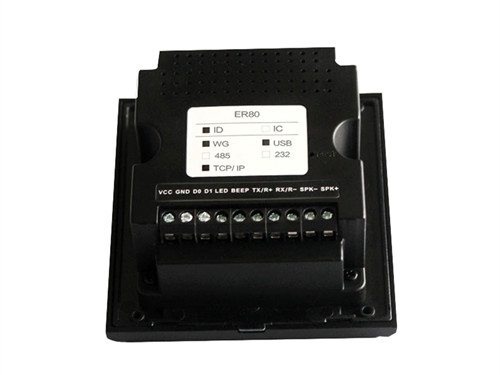

| Interface | Wiegand 26/ 34, RS232/ 485, TCP/IP, USB ( virtual keyboard) |
| Weight | 300 g |
| Features | |
| Power supply | 4-15 VDC |
| Power Consumption | < 800 mA |
| Read direction | Camera Centric Slant 45 degree |
| Scanner LED light | Built-in |
| Supported card type | QR, DM, 1D barcode |
| Optional IC card UID/ ID card | |
| OS | Windows XP, 7, 8, 10, Linux |
| Environment | |
| Operation Temp | 0 C- 70C |
| Operation Humidity | 10- 90 % RH, no condensation |
