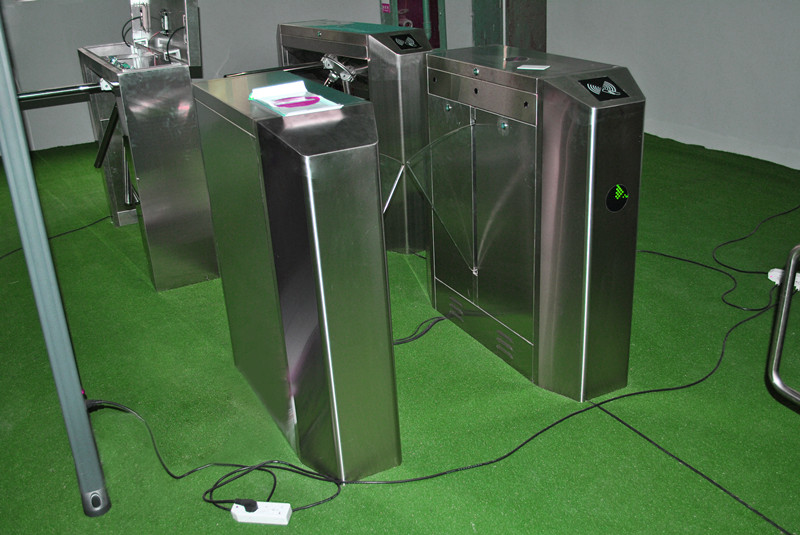

GEE-RG-003 Wing gate turnstiles

GEE-RG-003 Wing gate turnstiles

RFID turnstile, SUS304 material, Build-in RFID modules, infrared sensors with alarm system, networking by TCP/IP, RS485, IEC14443 protocol compliance

Download Specification

OverviewSpecificationApplicationsSupport

GEE-RG-003 is a high performance security gate for access control and identification. It integrates RFID modules and infrared sensor, which is an ideal solutions for fast check-in/ check out in high-traffic situations, such as metro, stadium, exhibition fair, etc. Beside this type of security gate provides TCP/IP, RS485 network interface, which allow user easily networking..


•  1200 mm* 300 mm *980 mm, SUS304 stainless steel

•   RFID reader writer, compliance with IEC14443 Type A protocol

•   3 pair Infrared sensor for accurately detecting motion directions and anti-tailing.

 •   UPS battery,  power-off protection

•   Wing Flap, self-lock at designated locations, automatic reset

 •   TCP/ IP, RS485 communication, easy for ad-hoc networks

 •   Brushless DC motor, smoothly working, low noise

 •  Sound and light alarm if illegal pass, max pass rate: 30 person/ minute

•   CE, RHOS compliance

Model:GEE-RG-003

Physical



Size

1200 * 300* 1000 mm, customizable

Material

Base: 1.5mm thick 304 Stainless Steel

Flap: High strenght transparent PMMA

Backlight

LED on Flaps

Max Gate width

600 mm

Power supply

AC110~ 240V, 50~ 60 Hz

Drive motor

DC motor, 24V /100 W

Communication interface

TCP/ IP, RS485

Infrared detector

3~ 6 couples

Backup power

UPS battery

Battery

Rechargable Li-ion Polymer battery, 3.7 V, 3200 mAH

Card Reader

Magnetic card, RFID card, Barcode card supported

Features



Infrared detector

3~ 6 couple, anti-clamping, anti-tailing, direction detection, alarm

LED indicator

Direction indication on reading zone

UPS

Flap will be open when power off or emergency occur

Alarm

Warn when illegal pass, reverse pass, tailing

Flap

Locked when at closed statue, externnal force break in unable

Card reader

ID / IC / Magnetic / barcode card upported

Blashless DC motor

smoothly working without virbration, low power consumption, low noice

LCD/ LED Display

English/ Chinese Menu for initialization and balance check

Pass speed

30 person/ minute

Audio

Artificial voice or monotone speaker

RFID



Frequency

13.56 MHz

Protocol supported

ISO14443A, ISO15693

Read/ Write Range

2 cm - 5 cm

Environment condition



Working Temperature

-30 ~ +70 Degree Celsius

Relative humidity

5- 95% RH, no condensation

Waterproof

IP44, outdoor installation capable

In transportation and ticketing feild, the traditional payment is by a simple paper ticket that bears some of security features, like florescent ink, security line, latent image, barcode, infra-red ink. Through it can be prevent most of the fake tickets, however hard work load, low identification rate, and relevant unsafe features enforce institutions had to recruit abundant workforce to maintain normally operation, and now everything was changed as RFID technology deeply implanted into this sector.


At most of bus station or subway station, you will not no longer find any paper tickets any more, which replaced them was a simple recharge card or NFC mobile phones. And in recent years, the pace of changing speeds up dramatically.

Thanks to the RFID technology, you do need to wait in line for ticket checking, all just by a simple touch, and you are allowed to get through, and payment will automatically deducted by the RFID readers.

The benefits are not only in its convenience, but also its security. Each RFID card will have a unique ID, which is permanently stored in its ROM, and can not be rewritten. Meanwhile the communication between the RFID card and RFID readers is encrypted. Let’s take oyster card( London metro card) for example, this type of card is embedded with NXP Mifare Desfire chip, which the chip is integrated with the 3DES encryption technology, and still now there is zero case of password being cracked.

This RFID technology also have been applied into certain of big event, such as Olympics, World Expo…

In the future, we will see more and more case of this advanced RFID technology being applied in our normal life, and therefore change our life for ever.
