GEE-RG-006 swing turnstile

GEE-RG-006 swing turnstile

Swing RFID turnstiles, SUS304 material, Build-in RFID modules, single or bilateral pass, networking by TCP/IP, EM, T5577, Mifare, ICODE chip supported, IEC14443, ISO15693, ISO18000-1 protocol compliance

Download Specification

OverviewSpecificationApplicationsSupport

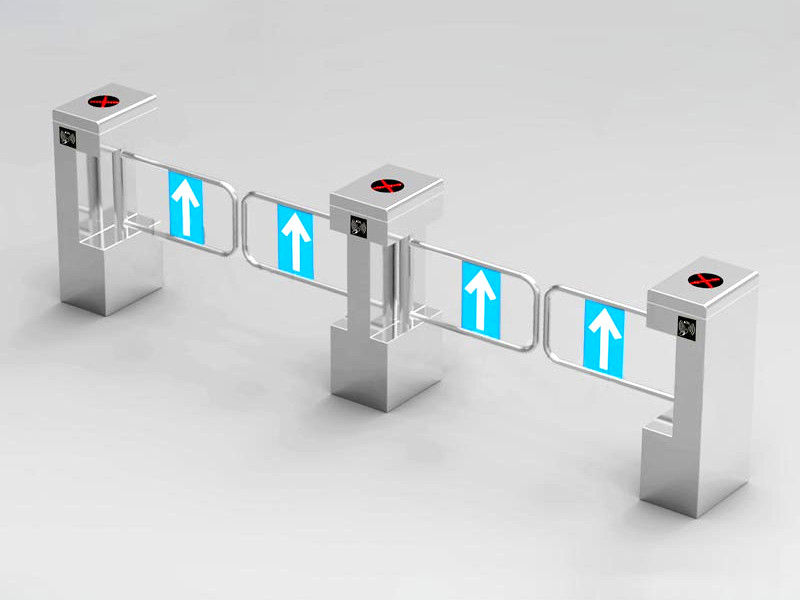

GEE-RG-006 is swing rfid turnstiles for access control in community or supermarket. It integrates RFID modules and swing arm mechanism, which if detect user's card, the swing arm will rotate 90 degree to let vistors in.  This rfid turnstile provides TCP/IP interface, which the user can easily ad-hoc network. Typical appplications: Community, supermarket


•  420 mm* 330 mm *1000 mm, SUS304 stainless steel

•  13.56 Mhz / 125 khz, EM, T5577, Mifare, ICODE supported

•   RFID reader writer, compliance with  IEC14443 Type A , ISO15693 & ISO18000-1 protocol

•   90 / 180 degree rotation  for each passing

•   Swing arm, self-lock at designated locations, automatic reset

•   Two channels pass, max pass rate: 60 person/ minute

•   TCP/ IP, RS485 communication, easy for ad-hoc networks

•   Brushless DC motor, smoothly working, low noise

•   CE, RHOS compliance



Model:GEE-RG-006

Main features



Size

420 mm * 330 mm * 1000 mm

Material

SUS304, 1.5 mm T

Typical Gate width

80 cm

Typical Swing arm length

60 cm

Swing angle

90 degree ( single directional pass) or 180 degree ( bi-directional pass)

Weight

50 kg

Passing rate



RF & Electrical



Frequency

125 khz/ 13.56 Mhz

Card supported

EM4100, EM4200, T5577, Mifare 1k, Mifare ultralight

Read distance

5 - 10 cm

Communication interface

TCP/ IP, RS485/ RS232

Power supply

ac 110 - 220 V, 50 Hz/ 60 Hz

Driver motor

Low noise DC motor, DC 24V, 220 mA

Other Features



Auto unlock

when detected legal signal, RFID turnstile is unlocked, the swing arm will rotate 90 degree to allow visitor passing

Auto lock

If a person passed or no one pass within certain seconds, the turnstile will restore to lock status and can not be pass.

Emergency unlock

If emergency occurs, power off the rfid turnstile will made the turnstile unlocking so as for people to freely pass.

Software



Access control system

integrates access control, member management, alarm, time attendance and other modules

SDK

provide DLL, source code and Demo software

Environment condition



Working Temperature

-25 ~ +50 Degree Celsius

Storage Temperature

-40 ~ +60 Degree Celsius

Relative humidity

5- 95% RH, no condensation

In transportation and ticketing feild, the traditional payment is by a simple paper ticket that bears some of security features, like florescent ink, security line, latent image, barcode, infra-red ink. Through it can be prevent most of the fake tickets, however hard work load, low identification rate, and relevant unsafe features enforce institutions had to recruit abundant workforce to maintain normally operation, and now everything was changed as RFID technology deeply implanted into this sector.


At most of bus station or subway station, you will not no longer find any paper tickets any more, which replaced them was a simple recharge card or NFC mobile phones. And in recent years, the pace of changing speeds up dramatically.

Thanks to the RFID technology, you do need to wait in line for ticket checking, all just by a simple touch, and you are allowed to get through, and payment will automatically deducted by the RFID readers.

The benefits are not only in its convenience, but also its security. Each RFID card will have a unique ID, which is permanently stored in its ROM, and can not be rewritten. Meanwhile the communication between the RFID card and RFID readers is encrypted. Let’s take oyster card( London metro card) for example, this type of card is embedded with NXP Mifare Desfire chip, which the chip is integrated with the 3DES encryption technology, and still now there is zero case of password being cracked.

This RFID technology also have been applied into certain of big event, such as Olympics, World Expo…

In the future, we will see more and more case of this advanced RFID technology being applied in our normal life, and therefore change our life for ever.
